Thank you for purchasing the Indicator LED Bus (ILB). This will allow you to further enhance your MX series experience. This accessory will allow you to have visual indications from LCDC based an many events, such as low hard drive space, new e-mail, and so on.
This kit includes;

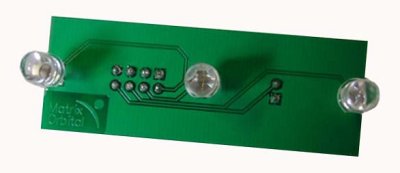

1x Indicator LED Bus
3x LED mounting hardware
1x Cable
1x Mounting overlay
You will require;
*LK/VK202/204-24-USB or any MX series
*A 8mm drill bit
*Free spot in your computer
*15-20 minutes of time
Installation:
1. Find a location to mount the Indicator
2. Place down the overlay
3. Drill out the holes using a 8mm drill bit
4. Insert the LED mounting hardware in and snap the LEDs into place

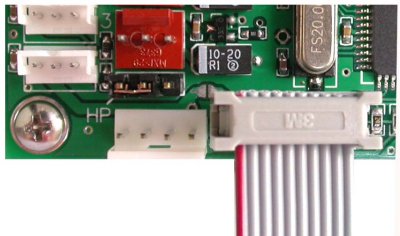

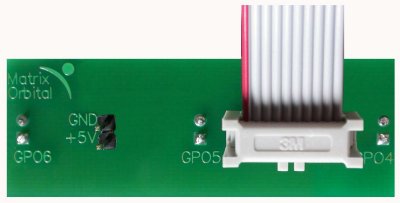

5. Connection the cable:
MX2/3
Indicator:

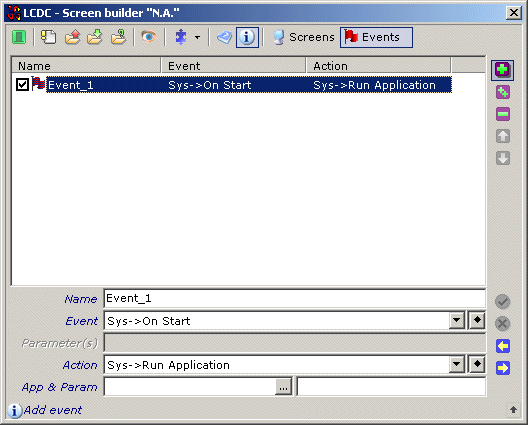

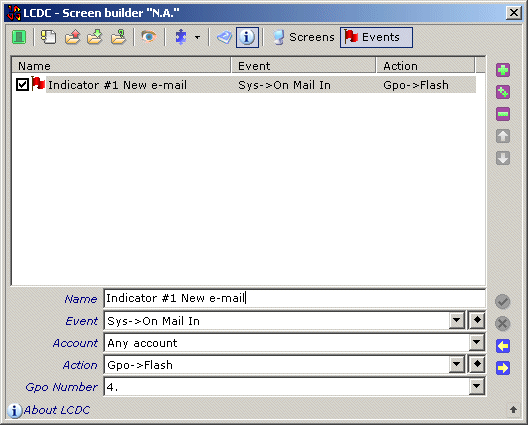

Now to configure LCDC to use the Indicator, all you have to do is create events by pressing the little plus button and then filling in the information. Just follow the three screen shots as an example and you can modify it how ever you see fit. If you have any questions please visit the forums!

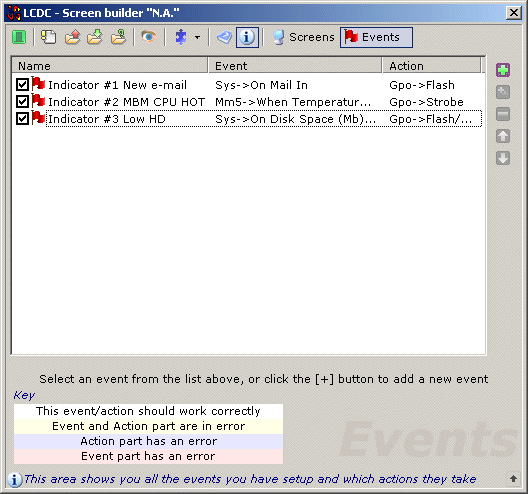

In this last screen shot we have three events created. You can create multiple event's for each GPO, like have one e-mail account flash, and another one strobe.
FAQ:
Q1:
Can I add more LEDs to the Indicator?
A1:
No.
Q2:
Can I change the LEDs to different colors?
A2:
Yes you can but this would be DIY type of job.
Q3:
Can I use the Indicator on other diplays?
A3:
Yes and no. All of the MX series will be able to use the Indicator as is As well as any display ending in -USB. To use the Indicator with non MX or -USB models you will have to make your own cable to interface to the Indicator
Q4:
How bright are the LEDs and what is the viewing angle?
A4:
They are 2000-3000 mcd and a 15degree viewing angle.
Q5:
Can I make them brighter?
A5:
If you replace them, and see Q2.
Q6:
Can I sue you if I blind myself with the Indicator?
A6:
Nope, you're on your own. We recomend wearing sun glasses around the Indicator.
